Medium Duty Pressed Stainless Steel

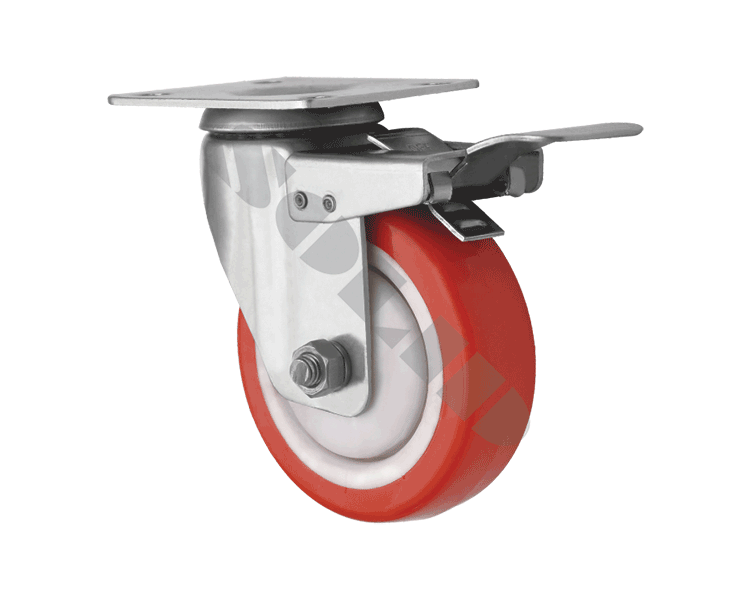

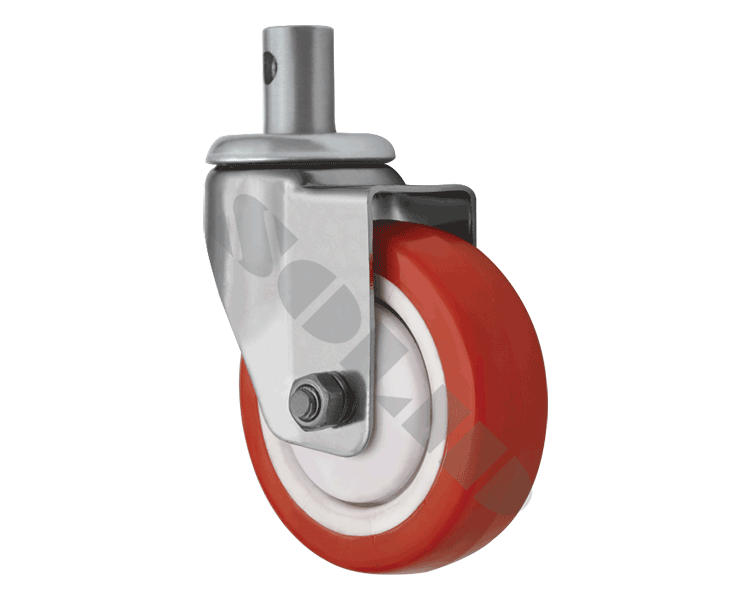

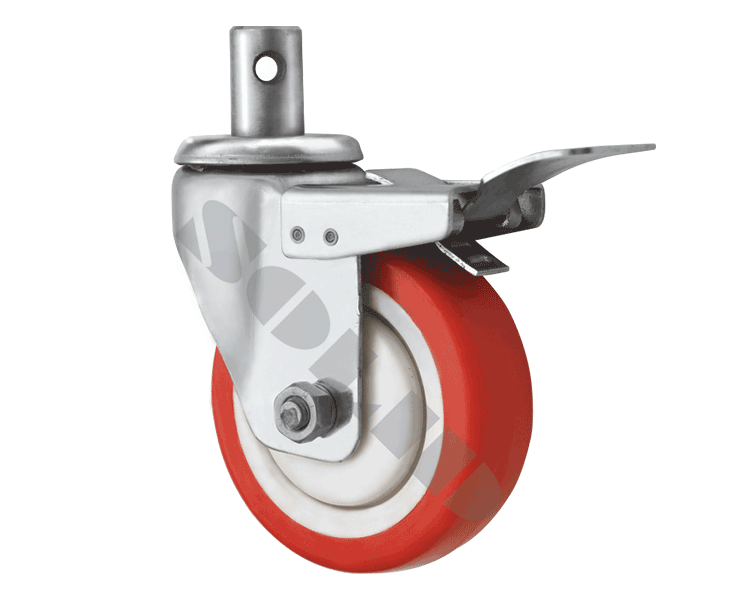

Plate / Pin / Stud Type Casters
Available Sizes
| Wheel DIA |
Overall Height |
Total Height |
Plate Size |
Bolt Hole Spacing |
Bolt Hole Dia |
Load Capacity Kgs. |
|---|---|---|---|---|---|---|
| 75 | 32 | 100 | 70 x 95 | 46 x 74 | 9 | 50 |
| 100 | 32 | 130 | 91 x 101 | 56 x 74 | 10 | 75 |
Code Reading / Ordering Example:
Medium Duty, Pressed Stainless Steel 304 Quality, Plate Type PU on CP Wheel of, Size 100MM Dia x 32 MM Width, Swivel with Brake.
MD PSS4 PT / PUCP / 100×32 / SBK
